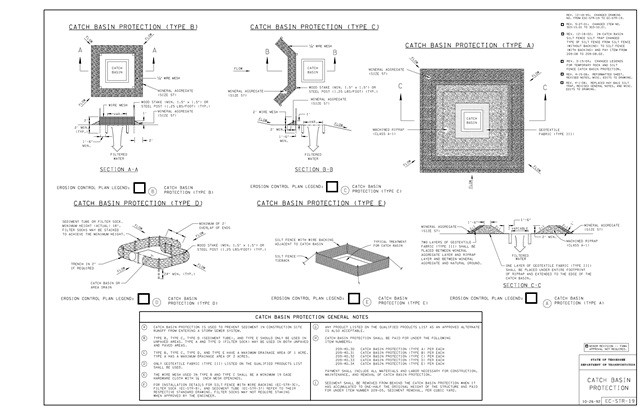

EC-STR-19
CATCH BASIN PROTECTION
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| EC-STR-2 | SEDIMENT FILTER BAGS | POSSIBLE USE OF SEDIMENT FILTER BAG |
| EC-STR-3C | SILT FENCE WITH WIRE BACKING | SEE STANDARD DRAWING FOR INSTALLATION DETAILS |
| EC-STR-3E | SILT FENCE FABRIC JOINING DETAILS | SEE STANDARD DRAWING FOR INSTALLATION DETAILS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 209-05 | C.Y. | SEDIMENT REMOVAL | |
| 209-40.30 | EACH | CATCH BASIN PROTECTION (TYPE A) | |
| 209-40.31 | EACH | CATCH BASIN PROTECTION (TYPE B) | |
| 209-40.32 | EACH | CATCH BASIN PROTECTION (TYPE C) | |
| 209-40.33 | EACH | CATCH BASIN PROTECTION (TYPE D) | |
| 209-40.34 | EACH | CATCH BASIN PROTECTION (TYPE E) |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 10-26-1992 | 12-18-1995 | 05-27-2001 | 12-18-2002 | 03-15-2004 | 04-15-2006 | 04-01-2008 |
