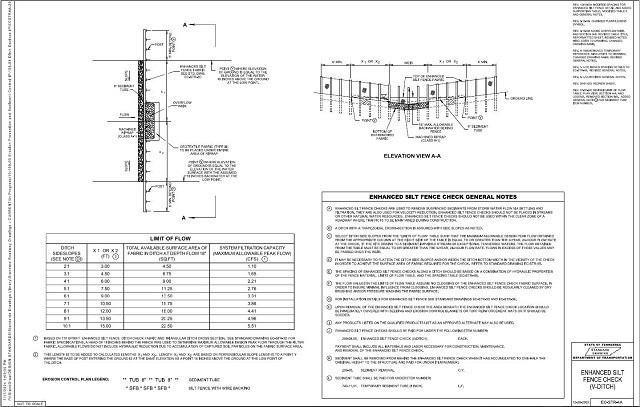

EC-STR-4A
ENHANCED SILT FENCE CHECK (V-DITCH)
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| EC-STR-3D | ENHANCED SILT FENCE | SEE STANDARD DRAWING FOR INSTALLATION DETAILS |
| EC-STR-3E | SILT FENCE FABRIC JOINING DETAILS | WHEN TWO SECTIONS OF SILT FENCE FABRIC ADJOIN EACH OTHER THEY SHALL BE JOINED ACCORDING TO STANDARD DRAWING |
| EC-STR-4B | ENHANCED SILT FENCE CHECK DETAILS | FOR ADDITIONAL INFORMATION |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 209-05 | C.Y. | SEDIMENT REMOVAL | |
| 209-08.05 | EACH | ENHANCED SILT FENCE CHECK | |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 12-18-2002 | 12-18-2003 | 03-15-2004 | 04-15-2006 | 04-01-2008 | 01-01-2010 | 08-01-2012 |
