EC-STR-49

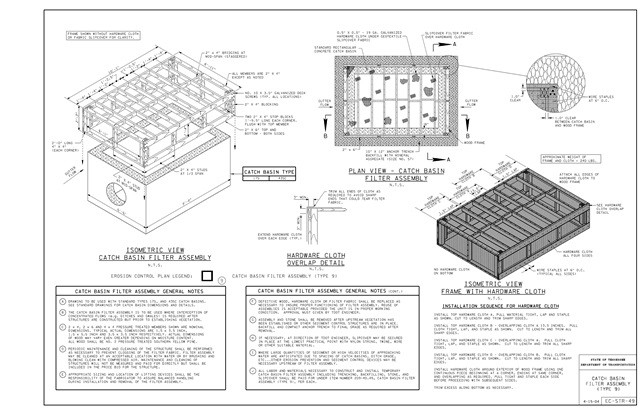

CATCH BASIN FILTER ASSEMBLY (TYPE 9)
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| D-CB-17S | STANDARD RECTANGULAR CONCRETE NO. 17 CATCH BASIN | SEE STANDARD DRAWINGS FOR CATCH BASIN DIMENSIONS AND DETAILS |
| D-CB-43SC | STANDARD 8'X 5'2" RECTANGULAR CONCRETE NO. 43SC CATCH BASIN | SEE STANDARD DRAWINGS FOR CATCH BASIN DIMENSIONS AND DETAILS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 209-40.49 | EACH | CATCH BASIN FILTER ASSEMBLY(TYPE 9) | |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 04-15-2004 |
