EC-STR-18

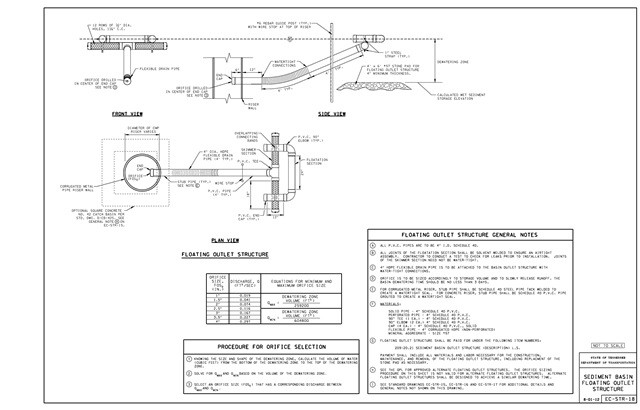

SEDIMENT BASIN FLOATING OUTLET STRUCTURE
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| D-CB-42S | STANDARD 32" X 32" SQUARE CONCRETE NO.42 CATCH BASIN | OPTIONAL CATCH BASIN |
| EC-STR-15 | SEDIMENT BASIN | SEE STANDARD DRAWING FOR ADDITIONAL DETAILS AND GENERAL NOTES NOT SHOWN ON THIS DRAWING |
| EC-STR-16 | SEDIMENT BASINS RISER AND COLLAR APPURTENANCES | SEE STANDARD DRAWING FOR ADDITIONAL DETAILS AND GENERAL NOTES NOT SHOWN ON THIS DRAWING |
| EC-STR-17 | SEDIMENT BASIN EMBANKMENT DETAILS | SEE STANDARD DRAWING FOR ADDITIONAL DETAILS AND GENERAL NOTES NOT SHOWN ON THIS DRAWING |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 209-20.21 | LS | SEDIMENT POND OUTLET STRUCTURE (DISCR.) | |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 08-01-2012 |
