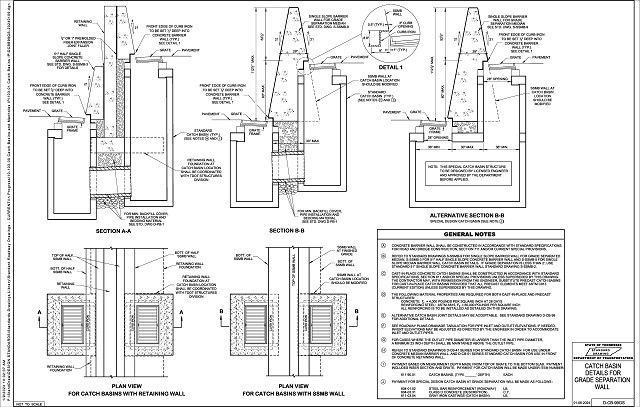

D-CB99-GS

CATCH BASIN DETAILS FOR GRADE SEPARATION WALL
D-CB99-GS

                                                                          (Click image to Open PDF)

Latest Revision Note

XX/XX/20XX    NEW STANDARD DRAWING

Related Standard Drawing

DRAWING DESCRIPTION REMARKS
D-CB-41 SERIES   FOR USE UNDER CONCRETE MEDIAN BARRIER
D-CB-51 SERIES   FOR USE UNDER CONCRETE MEDIAN BARRIER
D-CB-99 MISCELLANEOUS DETAILS FOR RECTANGULAR STRUCTURES REINFORCEMENT REQUIREMENTS AROUND PIPE OPENINGS
S-SSMB-2 51” SINGLE SLOPE CONCRETE BARRIER WALL DETAILS OF ADDITIONAL REINFORCING AT THE WALL ENDS OR AT EXPANSION JOINT
S-SSMB-3 51” HALF SIZE SINGLE SLOPE CONCRETE BARRIER WAL DETAILS OF ADDITIONAL REINFORCING AT THE WALL ENDS OR AT EXPANSION JOINT
S-SSMB-5 SINGLE SLOPE MEDIAN BARRIER WALL CATCH BASIN DETAIL FOR VARIOUS DETAIL OF SECTIONAL VIEWS
S-SSMB-9 SINGLE SLOPE BARRIER WALL FOR GRADE SEPARATED MEDIAN FOR DETAIL OF REINFORCING STEEL AT THE WALL ENDS OR AT EXPANSION JOINT.


Related Item Number

ITEM NO U/M DESCRIPTION REMARKS
604-01.02 LB. STEEL BAR REINFORCEMENT (ROADWAY)
604-03.31 C.Y. CLASS D CONCRETE (DESCRIPTION)
611-03.04 LB. GRAY IRON CASTINGS (CATCH BASIN)
611-90.01 EACH CATCH BASINS, (TYPE________’ DEPTH)

Archived Standard Drawings

DATES OF EACH ARCHIVED DRAWINGS (THE INITIAL STANDARD DRAWING BOLD)
01-06-2024|
