D-CB-99RB

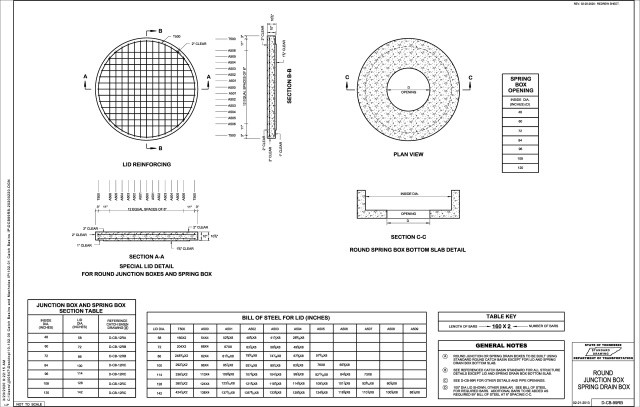

ROUND JUNCTION BOX SPRING DRAIN BOX
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| D-CB-12RA | STANDARD PRECAST 48" CIRCULAR NO.12 CATCH BASIN (FOR USE WITH 6" NONMOUNTABLE CURB) | DETAILS FOR STANDARD PRECAST 48" CIRCULAR NO. 12 CATCH BASIN |
| D-CB-12RB | STANDARD PRECAST 60" AND 72" CIRCULAR NO.12 CATCH BASIN (FOR USE WITH 6" NONMOUNTABLE CURB) | DETAILS FOR STANDARD PRECAST 60" & 72" CIRCULAR NO. 12 CATCH BASIN |
| D-CB-12RC | STANDARD PRECAST 84" THRU 120" CIRCULAR NO.12 CATCH BASIN (FOR USE WITH 6" NONMOUNTABLE CURB) | DETAILS FOR STANDARD PRECAST 84" THRU 120" CIRCULAR NO. 12 CATCH BASIN |
| D-CB-99R | MISCELLANEOUS DETAILS FOR ROUND STRUCTURES | MISCELLANEOUS DETAILS FOR ROUND STRUCTURES |
