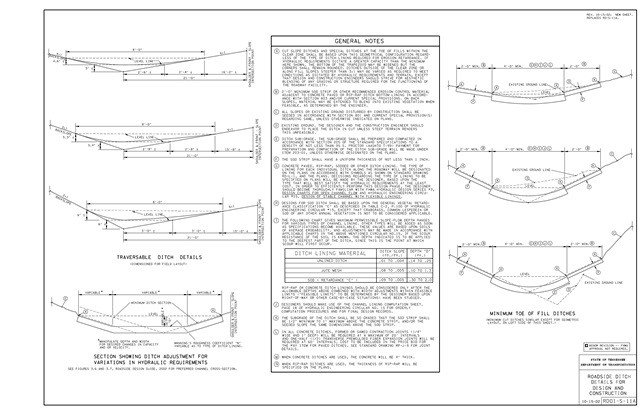

RD01-S-11A
ROADSIDE DITCH DETAILS FOR DESIGN AND CONSTRUCTION
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| RP-J-9 | CONTRACTION AND CONSTRUCTION JOINTS FOR CONCRETE PAVEMENT | JOINT DETAILS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 203-01 | C.Y. | ROAD & DRAINAGE EXCAVATION (UNCLASSIFIED) | |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 10-15-2002 |
This Page Last Updated: June 6, 2025 at 1:11 PM
