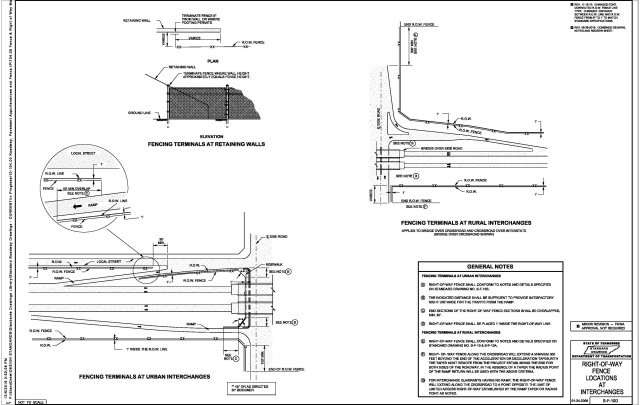

S-F-10D
RIGHT-OF-WAY FENCE LOCATIONS AT INTERCHANGES
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| *FENCING TERMINALS AT RURAL INTERCHANGES GENERAL NOTES* | ||
| S-F-10 | STANDARD RIGHT-OF-WAY STOCK FENCE | RIGHT-OF-WAY FENCE SHALL CONFORM TO NOTES AND DETAILS SPECIFIED |
| S-F-10A | STANDARD RIGHT-OF-WAY STOCK FENCE WITH TIMBER POSTS | RIGHT-OF-WAY FENCE SHALL CONFORM TO NOTES AND DETAILS SPECIFIED |
| *FENCING TERMINALS AT URBAN INTERCHANGES GENERAL NOTES* | ||
| S-F-10B | STANDARD RIGHT-OF-WAY CHAIN LINK FENCE | RIGHT-OF-WAY FENCE SHALL CONFORM TO NOTES AND DETAILS SPECIFIED |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 01-24-2008 | 11-15-2017 | 06-28-2019 |
