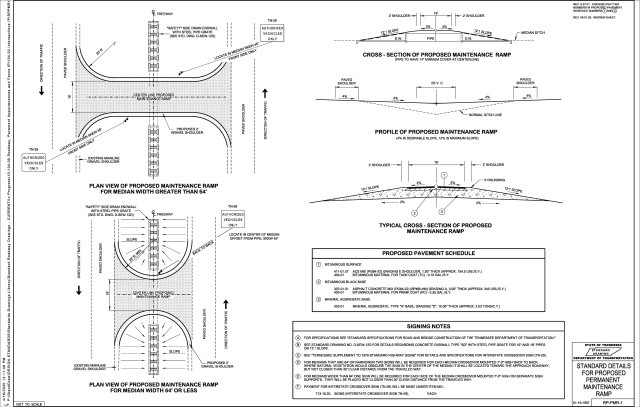

RP-PMR-1
STANDARD DETAILS FOR PROPOSED PERMANENT MAINTENANCE RAMP
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| D-SEW-12D | CONCRETE ENDWALL TYPE "SD" WITH STEEL PIPE GRATE (FOR 15" AND 18" PIPES) - (12:1 SLOPE) | FOR DETAILS REGARDING CONCRETE ENDWALL TYPE "SD" WITH STEEL PIPE GRATE FOR 15" AND 18" PIPES ON 12:1 SLOPE. |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 303-01 | C.Y. | MINERAL AGGREGATE, TYPE "A" BASE, GRADING "D" | 10.00" THICK (APPROX. 2.03 TONS/C.Y.) |
| 307-01.01 | S.Y. | ASPHALT CONCRETE MIX (PG64-22) (BPMB-HM) GRADING "A" | 3.00" THICK (APPROX. 345 LBS./S.Y.) |
| 402-01 | S.Y. | BITUMINOUS MATERIAL FOR PRIME COAT (PC) | 0.35 GAL./S.Y. |
| 403-01 | S.Y. | BITUMINOUS MATERIAL FOR TACK COAT (TC) | 0.02 GAL./S.Y. |
| 411-01.07 | S.Y. | ASPHALT CONCRETE MIX (PG64-22) GRADING "E" (SHOULDER) | 1.5" THICK (APPROX. 155LBS./S.Y.) |
| 713-16.20 | EACH | SIGNS (DESCRIPTION) | DESCRIPTION - INTERSTATE CROSSOVER SIGN TN-29 |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 01-19-1997 | 05-21-2001 | 05-01-2020 |
