S-SSMB-6F

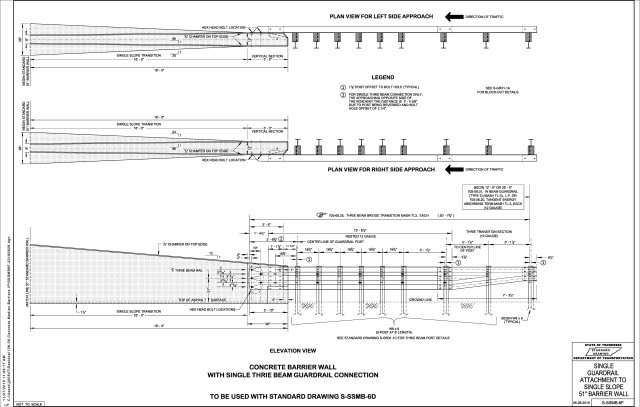

SINGLE GUARDRAIL ATTACHMENT TO SINGLE SLOPE 51” BARRIER WALL
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| S-GR31-1A | GUARDRAIL AND BLOCK-OUT DETAILS | FOR BLOCK-OUT DETAILS |
| S-GR31-1C | GUARDRAIL GENERAL NOTES AND POST DETAILS | FOR THRIE BEAM POST DETAILS |
| S-SSMB-6D | 51” CONCRETE SINGLE SLOPE BARRIER WALL FOR ATTACHING GUARDRAIL | MUST BE REQUIRED WITH STANDARD DRAWING |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 705-06.01 | L.F. | W BEAM GR (TYPE 2) MASH TL3 | |
| 705-06.20 | EACH | TANGENT ENERGY ABSORBING TERM MASH TL-3 | |
| 705-06.25 | EACH | THRIE BEAM BRIDGE TRANSITION MASH TL-3 |
