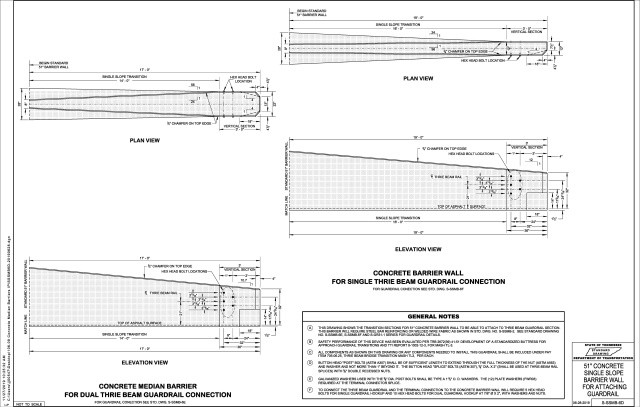

S-SSMB-6D
51” CONCRETE SINGLE SLOPE BARRIER WALL FOR ATTACHING GUARDRAIL
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| S-GR31-1 |
GUARDRAIL DETAILS | FOR GUARDRAIL DETAILS |
| S-SSMB-2 |
51” SINGLE SLOPE CONCRETE BARRIER WALL | BARRIER WILL REQUIRE STEEL BAR REINFORCING OR WELDED WIRE FABRIC AS SHOWN |
| S-SSMB-6E |
DUAL GUARDRAIL ATTACHMENT TO SINGLE SLOPE 51” BARRIER WALL | FOR GUARDRAIL DETAILS |
| S-SSMB-6F | SINGLE GUARDRAIL ATTACHMENT TO SINGLE SLOPE 51” BARRIER WALL | FOR GUARDRAIL DETAILS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 705-06.25 |
EACH |
THRIE BEAM BRIDGE TRANSITION MASH TL-3 | |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 06-28-2019 |
