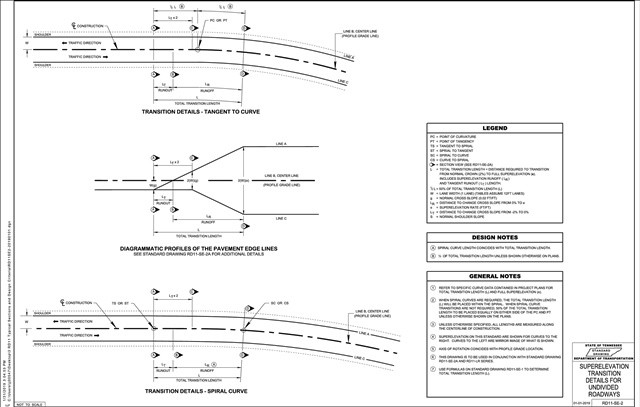

RD11-SE-2
SUPERELEVATION TRANSITION DETAILS FOR UNDIVIDED ROADWAY
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| RD11-SE-1 | TRANSITION DETAILS | USE FORMULAS ON STANDARD DRAWING TO DETERMINE TOTAL TRANSITION LENGTH (L) |
| RD11-SE-2A | SUPERELEVATION TRANSITION SECTIONS FOR UNDIVIDED ROADWAY | FOR ADDITIONAL DETAILS AND THIS DRAWING IS TO BE USED IN CONJUNCTION WITH STANDARD DRAWING |
| RD11-LR-SERIES | RD11 SLOPE DEVELOPMENT AND RUNOFF LENGTHS | THIS DRAWING IS TO BE USED IN CONJUNCTION WITH STANDARD DRAWING |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 01-01-2019 |
This Page Last Updated: June 6, 2025 at 1:11 PM
