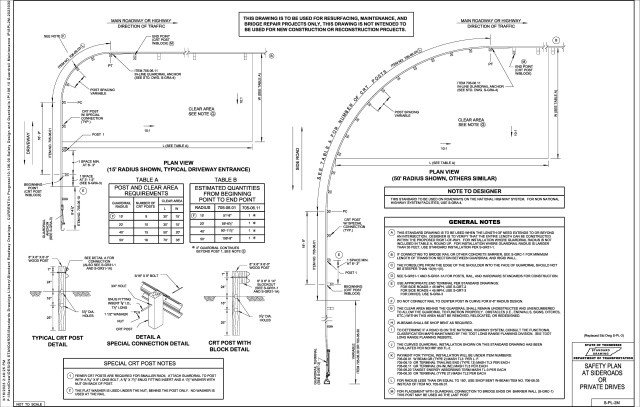

S-PL-2M
SAFETY PLAN AT SIDE ROADS OR PRIVATE DRIVES
(Click image to open PDF)
Latest Revision Note
03/01/2023 Standard drawing S-PL-2 has been renamed to S-PL-2M and has been placed under the Guardrail Maintenance Series.
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| S-GR31-1 | W-BEAM GUARDRAIL | FOR POSTS, RAIL, AND HARDWARE STANDARDS FOR CONSTRUCTION |
| S-GR31-1A | W-BEAM BARRIER FASTENING HARDWARE | FOR POSTS, RAIL, AND HARDWARE STANDARDS FOR CONSTRUCTION |
| S-GRA-3 | TYPE 13 GUARDRAIL ANCHOR | FOR GUARDRAIL ANCHOR |
| S-GRA-4 | IN-LINE GUARDRAIL ANCHOR | FOR NON NATIONAL HIGHWAY SYSTEM FACILITIES |
| S-GRT-2 | TYPE 38 GUARDRAIL TERMINAL | FOR SIDE ROADS > 45 MPH |
| S-GRT-3 | TYPE 21 GUARDRAIL TERMINAL | FOR SIDE ROADS < 45 MPH |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS | |
|---|---|---|---|---|
| 705-06.01 |
L.F. |
W BEAM GR (TYPE 2) MASH TL3 | FOR RADIUS GREATER THAN 150' |
|
| 705-06.10 |
EACH |
GR TERMINALTRAILING END (TYPE 13) MASH TL3 | ||
| 705-06.11 | EACH | GR TERMINAL (IN-INLINE) MASH TL3 | ||
| 705-06.20 |
EACH |
TANGENT ENERGY ABSORBING TERM MASH TL-3 | ||
| 705-06.30 |
EACH |
GR TERMINAL (ENERGY ABSORBING) MASH TL2 | ||
| 706-06.03 |
L.F. |
RADIUS RAIL | FOR RADIUS LESS THAN OR EQUAL TO 150' |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 07-11-2013 | 10-10-2016 | 03-01-2023 |
