D-PO-1

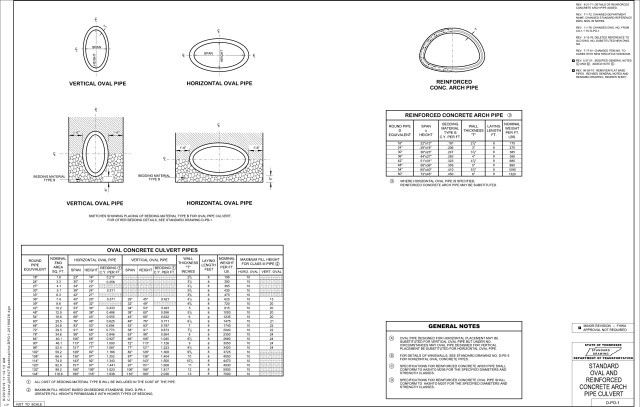

STANDARD OVAL AND REINFORCED CONCRETE ARCH PIPE CULVERT
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| D-PB-1 | STANDARD DETAILS FOR CONCRETE PIPE INSTALLATION | BEDDING DETAILS |
| D-PE-5 | STRAIGHT CONCRETE ENDWALLS FOR HORIZONTAL OVAL CONCRETE PIPES (ALL SIZES AND SKEWS) | WINGWALL DETAILS FOR HORIZONTAL OVAL CONCRETE PIPES |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 06-21-1971 | 07-01-1972 | 01-01-1976 | 03-15-1976 | 07-17-1981 | 05-27-2001 | 06-28-2019 |
