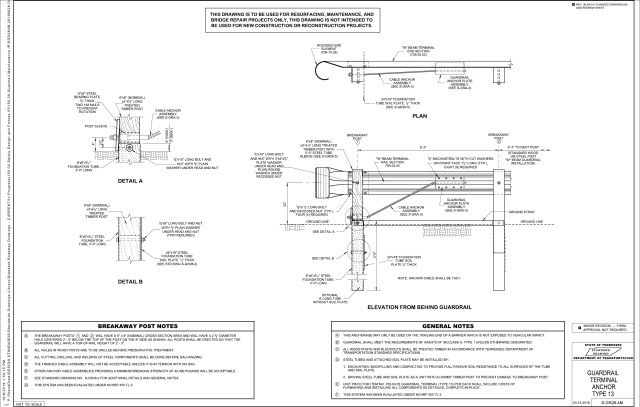

S-GR28-4M
GUARDRAIL TERMINAL ANCHOR TYPE 13
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| S-GR28-2M | GUARDRAIL HARDWARE DETAILS | FOR ADDITIONAL DETAILS AND GENERAL NOTES |
| S-GR28-5M | MEDIAN DIVIDER GUARDRAIL | SEE STANDARD DRAWING |
| S-GRA-3 | TYPE 13 GUARDRAIL ANCHOR | FOR CABLE ANCHOR ASSEMBLY |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 705-02.02 | LF | SINGLE GUARDRAIL (TYPE 2) | |
| 705-04.03 | EACH | GUARDRAIL TERMINAL (TYPE 13) | |
| 706-10.26 | EACH | ROUNDED END ELEMENT |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 03-15-2018 | 06-28-2019 |
