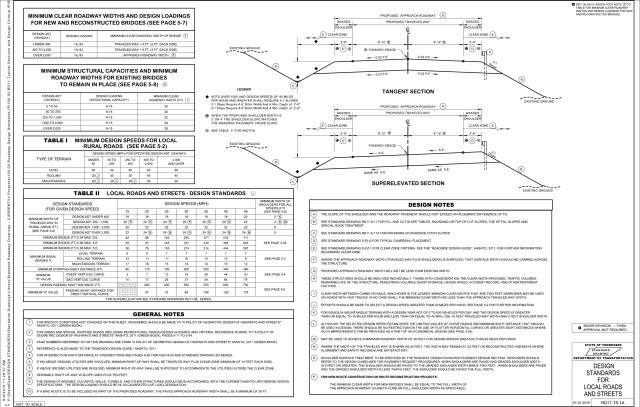

RD11-TS-1A
DESIGN STANDARDS FOR LOCAL ROADS AND STREETS
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| RD11-S-11 | DESIGN AND CONSTRUCTION DETAILS FOR ROADSIDE SLOPE DEVELOPMENT | FOR FILL AND CUT SLOPE TABLES, ROUNDING ON TOP OF CUT SLOPES, TOE OF FILL SLOPES AND SPECIAL ROCK TREATMENT |
| RD11-S-11A | ROADSIDE DITCH DETAILS FOR DESIGN AND CONSTRUCTION | FOR ROUNDING OF ROADSIDE DITCH SLOPES |
| RD11-SE-SERIES | RD11 TYPICAL SECTION AND DESIGN CRITERIA | FOR SUPERELEVATION SEE STANDARD DRAWINGS |
| S-CZ-1 | CLEAR ZONE CRITERIA | FOR CLEAR ZONE CRITERIA |
| S-PL-6 | SAFETY PLAN SAFETY HARDWARE PLACEMENT ON OUTSIDE EDGE | FOR TYPICAL GUARDRAIL PLACEMENT |
