D-PG-4

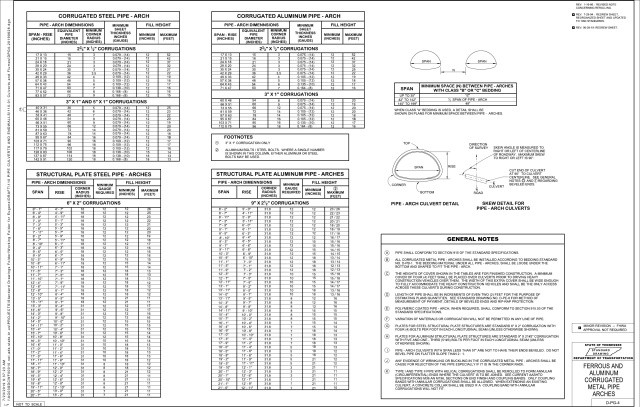

FERROUS AND ALUMINUM CORRUGATED METAL PIPE ARCHES
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| D-PB-1 | STANDARD DETAILS FOR CONCRETE PIPE INSTALLATION | BEDDING DETAILS |
| D-PE-8 | DETAIL OF STANDARD PIPE AND PIPE-ARCH CULVERT WITH BEVELED ENDS AND RIP-RAP | METHOD OF MEASUREMENT OF PAYMENT, DETAILS OF BEVELED ENDS, & RIP-RAP PROTECTION |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 01-16-1986 | 07-29-1994 | 06-28-2019 |
