MM-TS-3

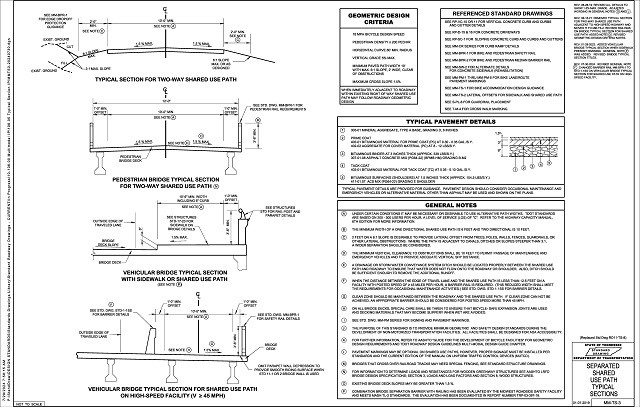

SEPARATED SHARED USE PATH TYPICAL SECTIONS
(Click image to open PDF)
Latest Revision Note
01/28/2022 ADDED VEHICULAR BRIDGE TYPICAL SECTION WHEN SIDEWALK PRESENT DRAWING. GENERAL NOTE (P) WAS ADDED. REVISED BRIDGE TYPICAL SECTION TITLES.
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| MM-BPR-1 | BIKE AND PEDESTRIAN SAFETY RAIL | FOR PEDESTRIAN RAIL REQUIREMENTS |
| MM-BPR-2 | BIKE AND PEDESTRIAN MEDIAN BARRIER RAIL | FOR BIKE AND PEDESTRIAN MEDIAN BARRIER RAIL |
| MM-BPR-3 | BARRIER SLOPED END TREATMENT | FOR SAFETY RAIL DETAILS |
| MM-CR-SERIES | CURB RAMP SECTION | FOR CURB RAMP DETAILS |
| MM-PM-1 | SIGNING AND PAVEMENT MARKINGS AT INTERSECTION CROSSINGS FOR SHARED-USE PATHS |
FOR BIKE LANE/ROUTE PAVEMENT MARKINGS |
| MM-PM-2 | SIGNING AND PAVEMENT MARKINGS FOR BICYCLE LANE OR ROUTES | FOR BIKE LANE/ROUTE PAVEMENT MARKINGS |
| MM-PM-3 | SIGNING AND PAVEMENT MARKINGS FOR BICYCLE LANES ON URBAN ROADWAYS | FOR BIKE LANE/ROUTE PAVEMENT MARKINGS |
| MM-PM-4 | SIGNING AND PAVEMENT MARKINGS FOR BICYCLE LANES | FOR BIKE LANE/ROUTE PAVEMENT MARKINGS |
| MM-PM-5 | SIGNING AND PAVEMENT MARKINGS FOR BICYCLE LANES AT INTERSECTIONS | FOR BIKE LANE/ROUTE PAVEMENT MARKINGS |
| MM-PM-SERIES | PAVEMENT MARKING SECTION | FOR BIKE LANE/ROUTE PAVEMENT MARKINGS |
| MM-SW-2 | ALTERNATE DETAILS FOR CONCRETE SIDEWALK (REHABILITATION) |
FOR ALTERNATE DETAILS FOR CONCRETE CURBS AND GUTTERS |
| MM-TS-1 | BIKE ACCOMMODATION DESIGN GUIDANCE | FOR BIKE ACCOMMODATION DESIGN GUIDANCE |
| MM-TS-2 | LATERAL OFFSETS FOR SIDEWALK AND SHARED USE PATH | FOR PEDESTRIAN FACILITY LATERAL OFFSETS |
| RP-D-15 | DETAILS OF STANDARD CONCRETE DRIVEWAYS | FOR CONCRETE DRIVEWAYS |
| RP-D-16 | DETAILS OF LOWERED STANDARD CONCRETE DRIVEWAYS | FOR CONCRETE DRIVEWAYS |
| RP-SC-1 | 6" SLOPING CONCRETE CURBS AND CONCRETE CURBS AND GUTTERS | FOR 6" SLOPING CONCRETE CURBS AND CONCRETE CURBS AND GUTTERS |
| RP-VC-10 | VERTICAL CONCRETE CURBS AND CONCRETE CURBS AND GUTTERS | FOR VERTICAL CONCRETE CURB AND CONCRETE CURBS AND GUTTER DETAILS |
| RP-VC-11 | VERTICAL CONCRETE CURBS AND GUTTERS 6" AND 7' DEPTH | FOR VERTICAL CONCRETE CURB AND CONCRETE CURBS AND GUTTER DETAILS |
| S-PL-6 | SAFETY PLAN SAFETY HARDWARE PLACEMENT ON OUTSIDE EDGE | FOR GUARDRAIL PLACEMENT |
| STD-11-1 | BRIDGE RAILING W/ STRUCTURAL TUBING | SEE DETAILS |
| STD-11-2 | STANDARD CONCRETE CLASSIC RAIL | SEE DETAILS |
| T-M-4 | STANDARD INTERSECTION PAVEMENT MARKINGS | FOR CROSS WALK MARKING |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION |
|---|---|---|
| 303-01 | TON | MINERAL AGGREGATE, TYPE A BASE, GRADING D |
| 307-01.08 | TON | ASPHALT CONCRETE MIX (PG64-22) (BPMB-HM) GRADING B-M2 |
| 402-01 | TON | BITUMINOUS MATERIAL FOR PRIME COAT (PC) |
| 402-02 | TON | AGGREGATE FOR COVER MATERIAL (PC) |
| 403-01 | TON | BITUMINOUS MATERIAL FOR TACK COAT (TC) |
| 411-01.07 | TON | ACS MIX (PG64-22) GRADING E SHOULDER |
