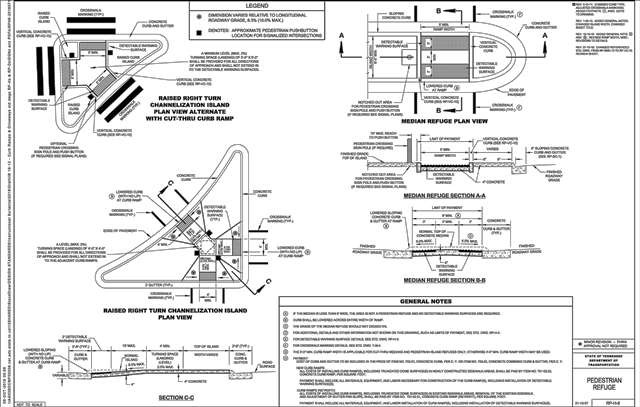

RP-H-6
PEDESTRIAN REFUGE
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| RP-H-3 | DETECTABLE WARNING SURFACE PLACEMENT ON CURB RAMPS | FOR DETECTABLE WARNING SURFACE PLACEMENT ON CURB RAMPS DETAILS |
| RP-H-4 | PERPENDICULAR CURB RAMP | FOR PERPENDICULAR CURB RAMP DETAILS |
| RP-VC-10 | VERTICAL CONCRETE CURBS AND CONCRETE CURBS AND GUTTERS | FOR HEIGHT OF LOWER CURB |
| T-M-4 | STANDARD INTERSECTION PAVEMENT MARKINGS | FOR CROSS-WALK MARKING DETAILS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION |
|---|---|---|
| 701-02.01 | S.F. | CONCRETE CURB RAMP (RETROFIT) |
| 701-02.03 | S.F. | CONCRETE CURB RAMP |
| 702-01 | C.Y. | CONCRETE CURB |
| 702-03 | C.Y. | CONCRETE COMBINED CURB & GUTTER |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 01-15-2007 | 04-13-2011 | 01-15-2013 | 10-10-2016 | 07-16-2018 |
