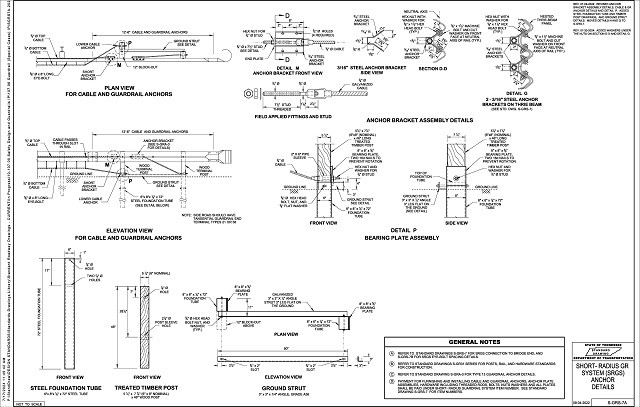

SHORT – RADIUS GUARDRAIL SYSTEM (SRGS) ANCHOR DETAILS
S-GRA-7A

                                                                                             Click image to Open PDF

Latest Revision Note

01/09/2024    REVISED ANCHOR BRACKET ASSEMBLY DETAILS, CABLE & GR ANCHOR DETAILS AND DETAIL P. ADDED STEEL FOUNDATION TUBE AND TIMBER POST DRAWINGS, AND GROUND STRUT DETAILS. MOVED DETAILS N AND Q TO S-GRS-7.

Related Standard Drawing

DRAWING DESCRIPTIONREMARKS
S-GR31 SERIESSafety Design and Guardrails → GUARDRAIL DETAILSFOR POSTS, RAIL, AND HARDWARE STANDARDS
S-GRA-3TYPE 13 GUARDRAIL ANCHORFOR ADDITIONAL BEARING AND ANCHOR PLATES ASSEMBLY DETAILS
S-GRS-7SHORT – RADIUS GUARDRAIL SYSTEM (SRGS)FOR THE DETAILS SHOWN
