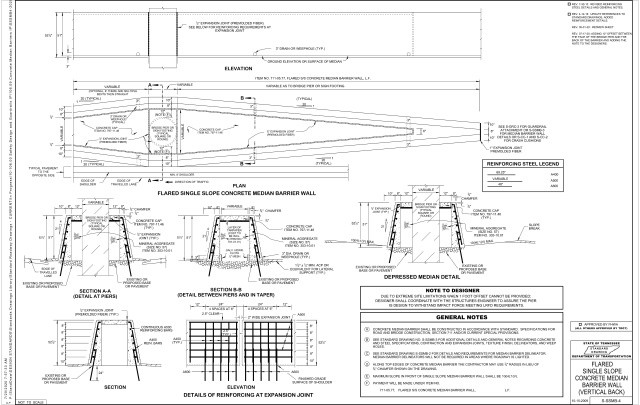

S-SSMB-4
FLARED SINGLE SLOPE CONCRETE MEDIAN BARRIER WALL (VERTICAL BACK)
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| S-CC-1 | CRASH CUSHION | FOR CRASH CUSHIONS |
| S-CC-2 | CRASH CUSHION (GATING) BARREL ARRAY | FOR CRASH CUSHIONS |
| S-GRC-3 | MEDIAN DIVIDER GUARDRAIL TRANSITION TO MEDIAN BARRIERS | FOR GUARDRAIL ATTACHMENT |
| S-SSMB-2 | 51" SINGLE SLOPE CONCRETE BARRIER WALL | FOR DETAILS AND REQUIREMENTS FOR MEDIAN BARRIER DELINEATOR |
| S-SSMB-3 | 51" HALF SIZE SINGLE SLOPE CONCRETE BARRIER WALL | FOR MEDIAN BARRIER WALL DETAILS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 303-10.01 | TON | MINERAL AGGREGATE (SIZE 57) | |
| 711-05.77 | LF | FLARED S/S CONCRETE MEDIAN BARRIER WALL | |
| 797-11.46 | C.Y. | CONCRETE CAP |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 10-15-2009 | 07-30-2010 | 04-12-2016 | 05-01-2020 | 07-17-2020 |
