S-GRC-5

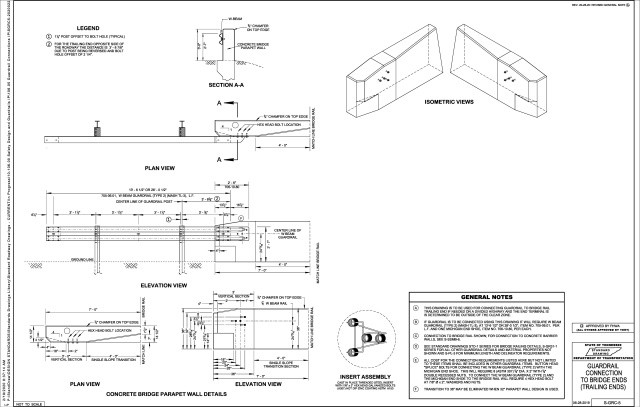

GUARDRAIL CONNECTION TO BRIDGE ENDS (TRAILING ENDS)
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| S-GR31-1 | W-BEAM GUARDRAIL | FOR BRIDGE RAILING DETAILS |
| S-PL-3 | SAFETY PLAN: MINIMUM INSTALLATION AT BRIDGE ENDS | FOR ALL OTHER GUARDRAIL DETAILS AND MATERIAL PROPERTIES NOT SHOWN |
| S-SSMB-6 | GUARDRAIL ATTACHMENT TO SINGLE SLOPE CONCRETE BARRIER WALL | FOR CONNECTION TO CONCRETE BARRIER WALLS |
