S-GR28-1M

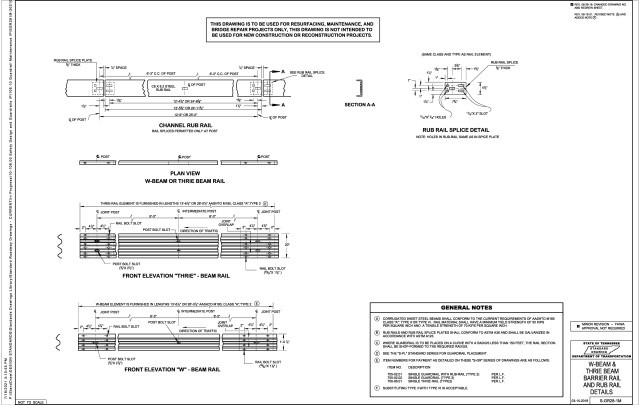

W-BEAM & THRIE BEAM BARRIER RAIL AND RUB RAIL DETAILS
(Click image to open PDF)
Latest Revision Note
06/15/2021 REVISED NOTE (A) AND ADDED NOTE (F).
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| S-PL-SERIES | S-PL-1 THRU S-PL-6A | FOR GUARDRAIL PLACEMENT |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION |
|---|---|---|
| 705-02.01 | LF | SINGLE GUARDRAIL WITH RUB-RAIL (TYPE 2) |
| 705-02.02 | LF | SINGLE GUARDRAIL (TYPE 2) |
| 706-06.01 | LF | SINGLE THRIE RAIL (TYPE2) |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 03-15-2018 | 06-28-2019 | 06-15-2021 |
